6 Component Underfloor External Wind Tunnel Balance

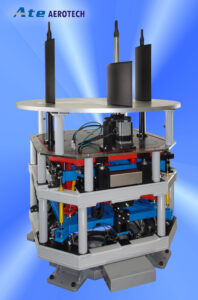

This 6 Component Underfloor Wind Tunnel Balance is designed specifically for use in small to medium sized wind tunnels. It is a high accuracy, research quality balance, ideally suited for educational and laboratory wind tunnel research work.



The above example is a Virtual Centre design with typical accuracies of better than 0.1% of full scale.











Typical Technical Summary

ComponentLoad Range
Lift500 – 1000 N
Pitch30 – 80Nm
Drag100 – 300 N
Side Force100 – 300 N
Yaw25 – 50Nm
Roll25 – 60Nm

Features

  • External underfloor virtual centre wind tunnel balance
  • 6 aerodynamic components measured separately
  • High accuracy and repeatability
  • Low deflection
  • Model tare compensation system
  • On board control and data acquisition system
  • Automatic calibration verification system
  • Automatic locking system for model rigging safety
